Weld Timer for Micro Welding Applications

SPATZ+ High Precision Weld Timer

Our compact SPATZ+ high precision weld timers are universally applicable and inexpensive alternatives to conventional power sources for micro and small parts connections. Here are some facts about our SPATZ+ Weld Timer:

Compact, uniform design, regardless of whether HF, MF, HPAC

Simple plug & play commissioning

Extensive connection options such as:

Measuring signal inputs for current, voltage, 2x displacement (analog / digital), 2x force, temperature
2x proportional valve output
2x LSK linear welding head
16 / 11 digital I/O, extendable
Sensor switchover option for up to 5 welding heads
Numerous fieldbus variants
Master / slave system for more current / higher voltage
Ethernet/USB

Control types (in 25 µs cycle): current (KSR), voltage (KUR), power (KPR), temperature (KTR)

1 024 programs / 16 freely programmable pulses

Numerous options for switching off / on via position, voltage and force thresholds

Tolerance band monitoring

Numerous counters

Storage of the last 100 000 QA data in the timer

HD curve display for analysis of force and displacement in particular

Numerous transfer options for QS data into superordinate systems, as well as programming options out of superordinate systems (Industry 4.0)

Uniform, intuitive programming / analysis software

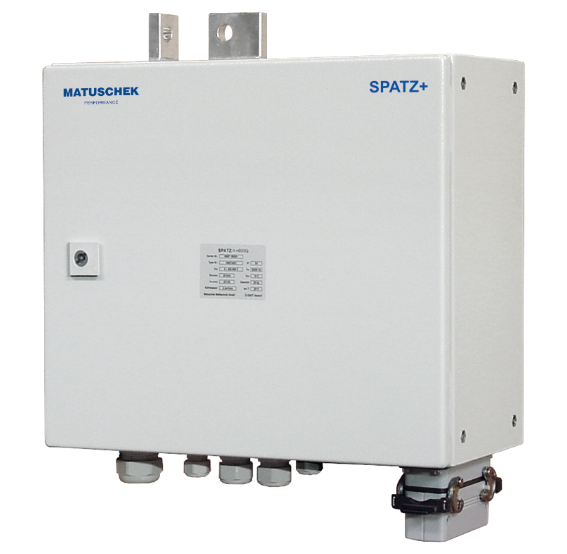

SPATZ+H9000

I₂:	100 - 9 000 A (9 kA, 6 % ED)
S_max:	100 kVA, 400 V
U₂₀:	10 V DC
Cycle:	20 000 Hz
Transf.:	internal

SPATZ+H12

I₂:	100 - 12 000 A (7.5 kA, 6 % ED)
S_max:	150 kVA, 400 V
U₂₀:	12 V DC
Cycle:	20 000 Hz
Transf.:	internal

SPATZ+H300

I₂:	100 - 9 000 A (9 kA, 6 % ED)
S_max:	100 kVA, 400
U₂₀:	10 V DC
Cycle:	20 000 Hz
Transf.:	external (SPATZT1-Pack)

SPATZ+H300X

I₂:	100 - 12 000 A (7.5 kA, 6 % ED)
S_max:	150 kVA, 400 V
U₂₀:	12 V DC
Cycle:	20 000 Hz
Transf.:	external (SPATZT1X-Pack)

SPATZ+H300AC

I₂:	212 A (9 kA, 6 % ED)
S_max:	106 kVA, 400
U_2N:	500 V AC, 20 000 Hz
Cycle:	500 Hz, sinus signal (without phase control)
Transf.:	external (SPATZTW500)

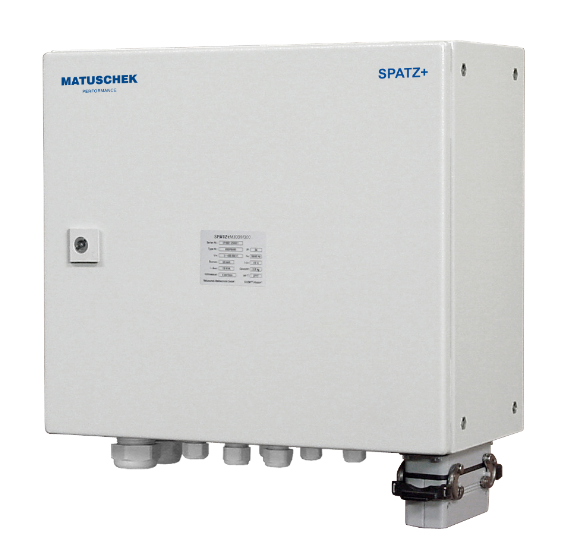

SPATZ+M300

I₂:	300 A
S_max:	150 kVA, 400 V
U_2N:	500 V DC, 1 000 Hz
Cycle:	1 000 Hz
Transf.:	external (SPATZTI60R/TI120R)

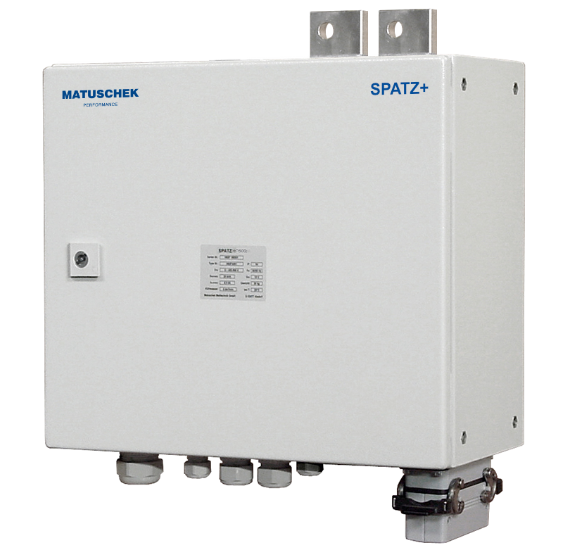

SPATZ+P500

I₂:	10 - 500 A
Output:	potential free
U_2N:	23 V DC
Input:	230 V socket

TECHNICAL DATA

The following additional features distinguish our SPATZ+ high precision weld timer:

Programs:

1 024

Welding pulses per program:

Measuring signal inputs:

current, voltage, displacement, force, temperature

Interfaces:

Ethernet, USB

Digital I/O:

16 / 11

Degree of protection:

IP54

Dimensions (W x H x D):

380 x 430 x 210 mm (14.96 x 16.93 x 8.27 ")

Weight:

H9000 / H12: 30 kg (66.14 lbs)
M & H300 Serie: 25 kg (55.12 lbs)
P500: 22 kg (48.50 lbs)

Cooling:

4 l/min, 20 °C (P500: without)

Supply voltage:

3~ 400 - 500 V (P500: 100 - 240 V), 50 / 60 Hz

Rated capacity:

28 kVA (M300: 90 kVA, P500: without) at 50 % ED, 400 V
(P500 power consumption: 0.125 kVA)

Programs:
1 024
Welding pulses per program:
16
Measuring signal inputs:
current, voltage, displacement, force, temperature
Interfaces:
Ethernet, USB
Digital I/O:
16 / 11
Degree of protection:
IP54
Dimensions (W x H x D):
380 x 430 x 210 mm (14.96 x 16.93 x 8.27 ")
Weight:
H9000 / H12: 30 kg (66.14 lbs)
M & H300 Serie: 25 kg (55.12 lbs)
P500: 22 kg (48.50 lbs)
Cooling:
4 l/min, 20 °C (P500: without)
Supply voltage:
3~ 400 - 500 V (P500: 100 - 240 V), 50 / 60 Hz
Rated capacity:
28 kVA (M300: 90 kVA, P500: without) at 50 % ED, 400 V
(P500 power consumption: 0.125 kVA)

	TRANSFORMERS The SPATZ+ weld timers are combined with SPATZ+ transformers.
	HIGH PRECISION WELDING HEADS The SPATZ+ high precision weld timers are combined with SPATZ+LSK high precision welding heads.
	FIELDBUS- & EXTENSION CARDS To extend connectivity and variable system integration, the SPATZ+ weld timers are upgraded with SPATZ+ fieldbus cards and SPATZ+ extension cards.
	SOFTWARE The entire setting, parameterization and visualization of the welding parameters is carried out by the SPATZ software family.
	SUPPORT, SALES AND TRAINING We would be happy to advise you on the selection of suitable solutions for your individual welding tasks and inform you about our training portfolio.
